Important attributes |
|
|
Product Name |

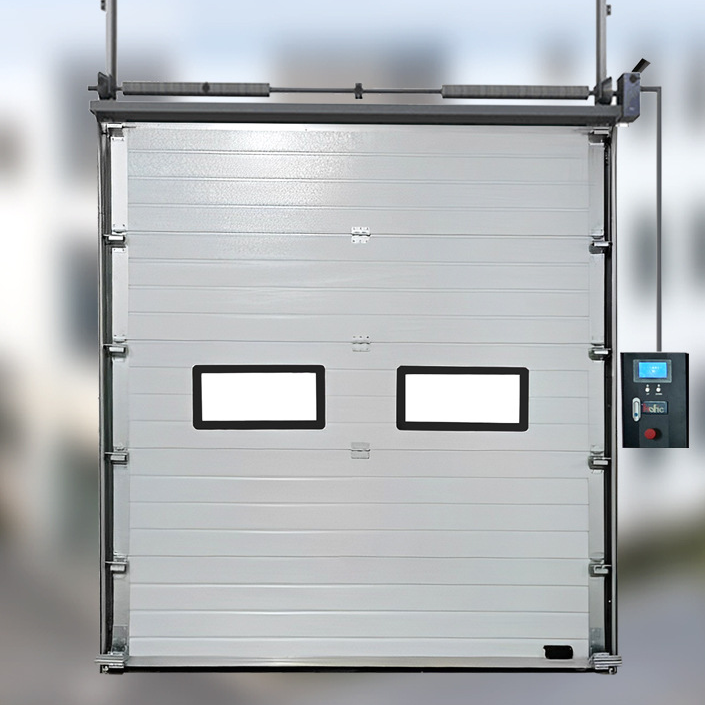

Insulated Sectional Door |
|
Product model |
SSD-IAS |
|
Material |
steel/Aluminum alloy |
|
Features |
Insulation, wind resistance, anti-theft, sealing, security, intelligent control |
|
Application scenarios |
Industrial plants, logistics and warehousing buildings and other logistics access |
|
opening mode |
Electric/manual |
|
size |
Minimum size :W2000mmH2000mm(6'7 W 6'7 H) |
|
door panel |
PU sandwich panel, total thickness 42mm |
|
Polyurethane |
Huntsman brand, freon-free, density: 48kg/m³, closed-cell rate>95% |
|
surface operation |
Embossed on the metal surface |
|
the height of the door panel |
500mm |
|
rail |
Patented wind-resistant track design |
|
Rail connection method |
Bolted connection (easy to maintain) |
|
Lifting mode |
Vertical Lift/High Lift/Standard Lift(Right Angle lift) |
|
speed |
0.25m/s |
|
motor |
Electronic limit motor with absolute encoder for precise positioning |
|

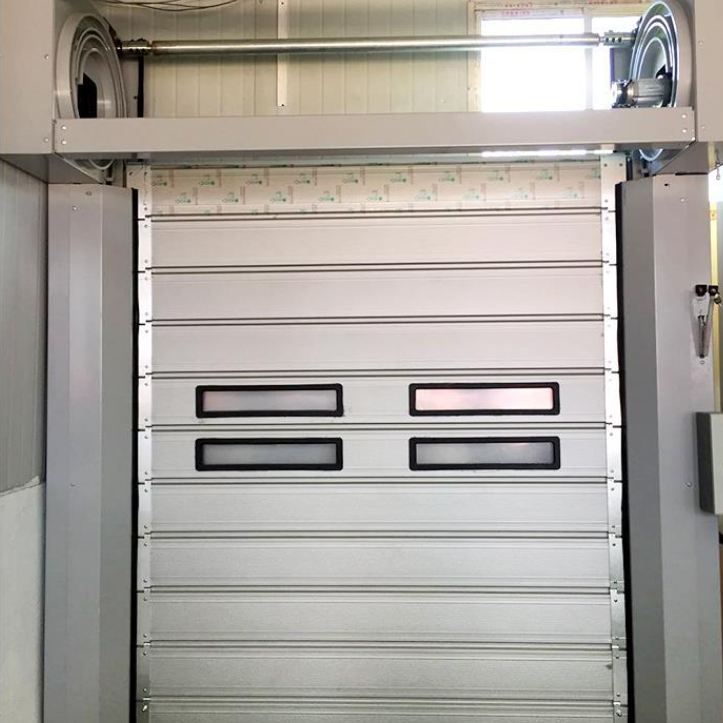

spring |
High-strength spring steel, shot blasting electrophoresis treatment, corrosion resistance, not easy to rust, no need for maintenance |
|
Control box |
Intelligent control system: fault code display, operation status display, fire linkage, interlock function, self-safety protection |
|
Wind resistance rating |
700pa(GB/T 7106-2008) |
|
Thermal Insulation Property |
K=1.1W/(m².K) |
|
watertight |
Grade 1(GB/T 7106-2008) |
|
airtightness |
Grade 7(GB/T 7106-2008) |
|
color |
RAL9002/RAL9006/RAL7040/RAL7045 |
|
wireless bottom safty device |
The wireless bottom safty device no longer needs a spiral wire, which avoids the entanglement and accidental scratching of the |
|
Wire rope anti-breaking device |
When the wire rope is broken, the safety gate blade can automatically get stuck on the track to avoid the door body falling directly. |
|
spring |
anti-breakage |
|
panel |
Anti-pinch hand design |
|
Semi-closed track hand guard design |
The handguard protection makes the door safer during use, and the track and auxiliary rail are removeable, which is easy to replace and effectively reduce the maintenance cost. |
|
Wire rope built-in safety design |
The wire rope is placed on the inside of the track, which is not easy to touch and avoid being accidentally pinched |
|
infared safty device |
optional |
|
Latch locks |
optional |
|
Windows |
optional |

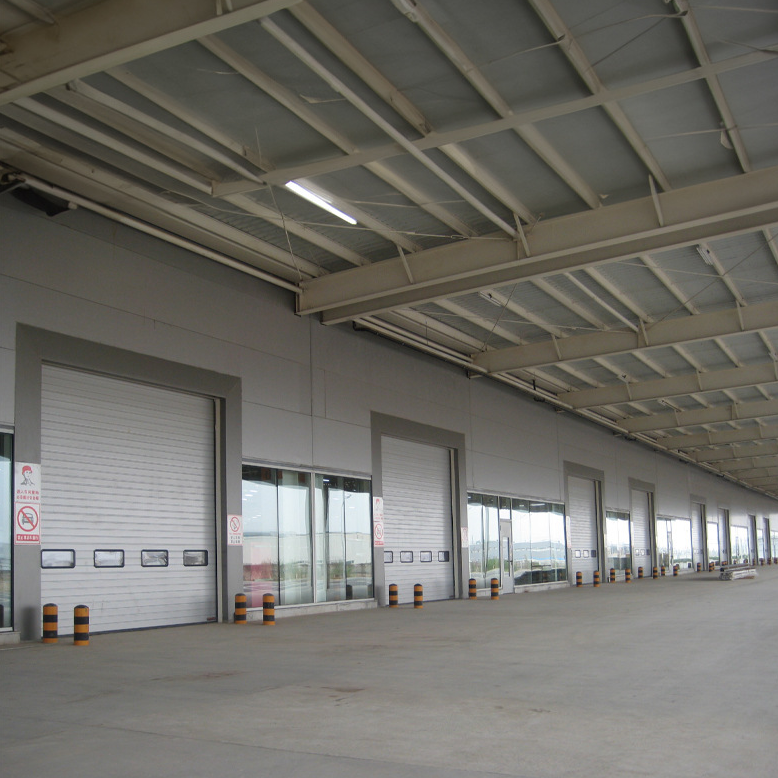

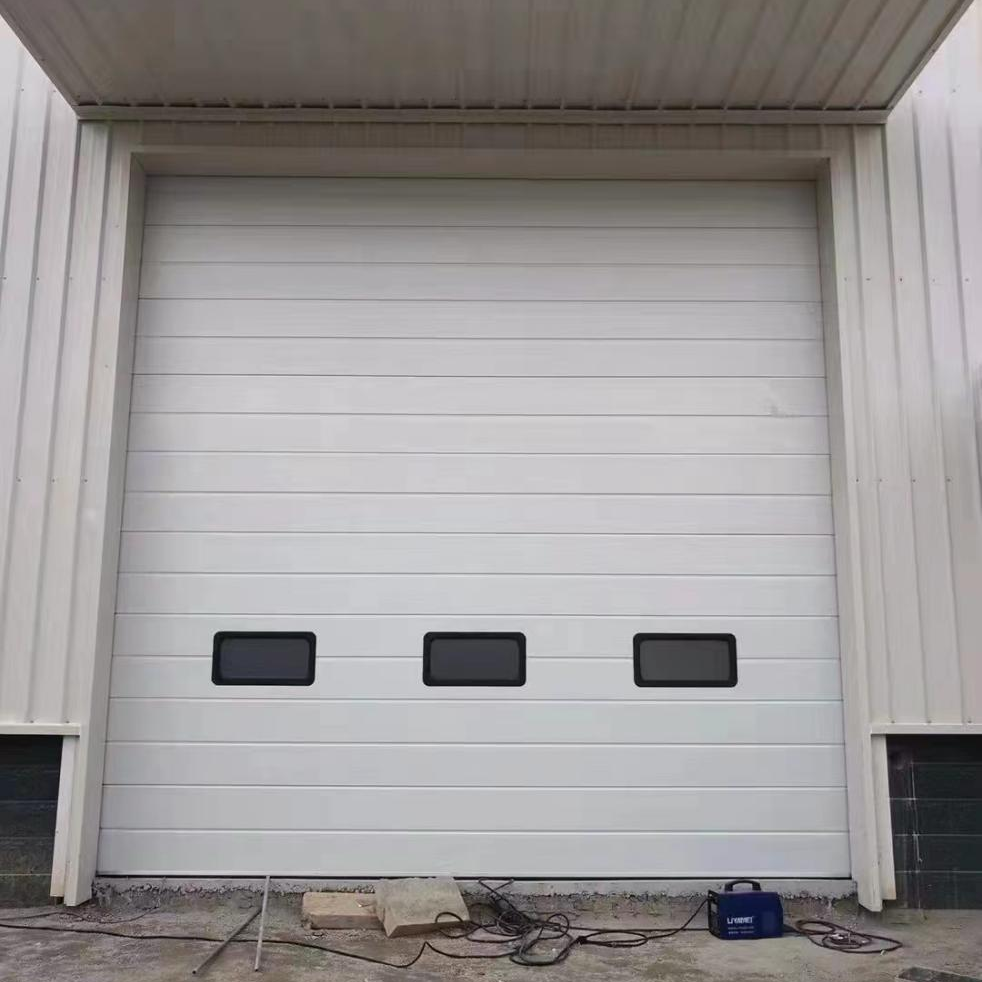

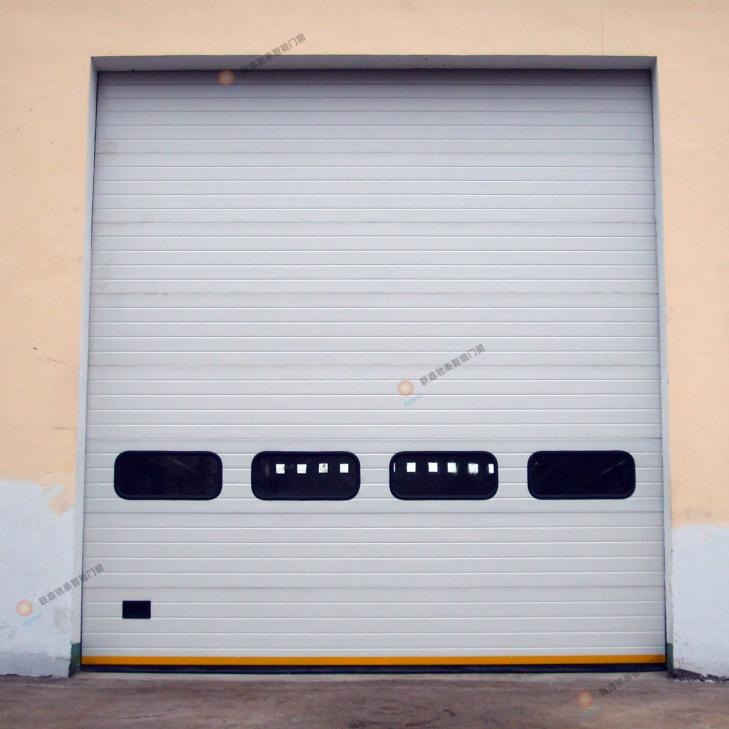

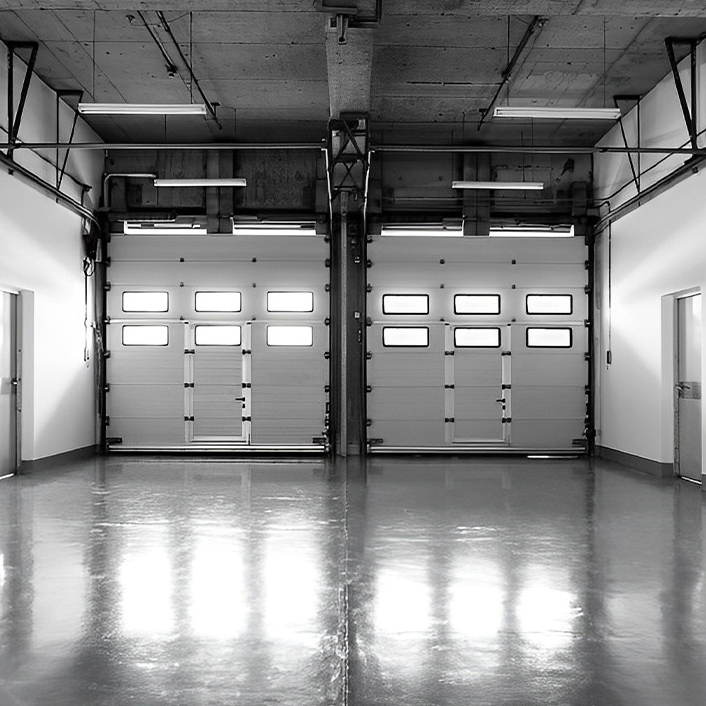

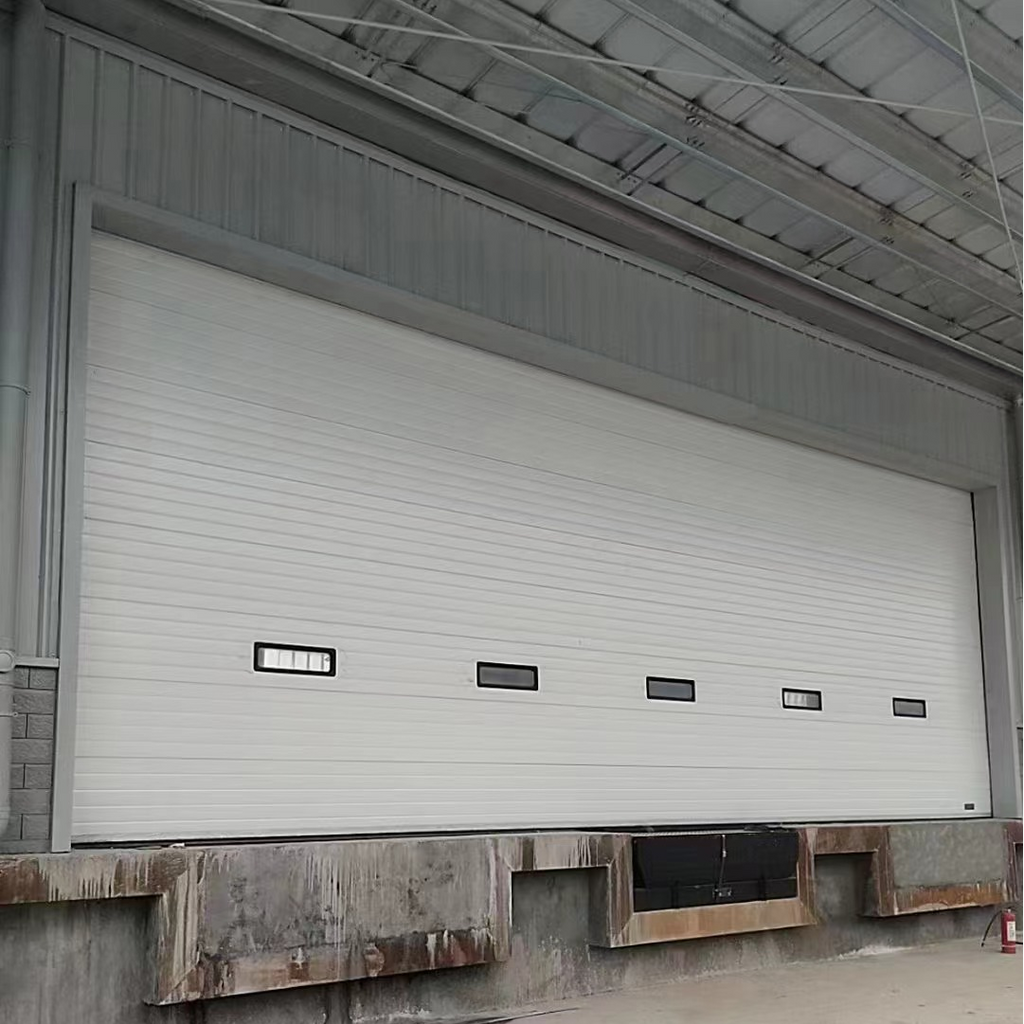

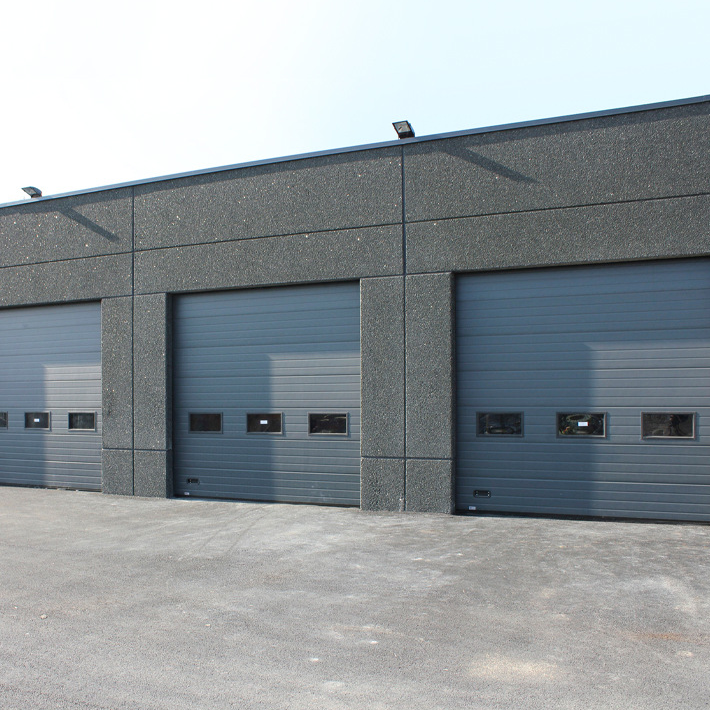

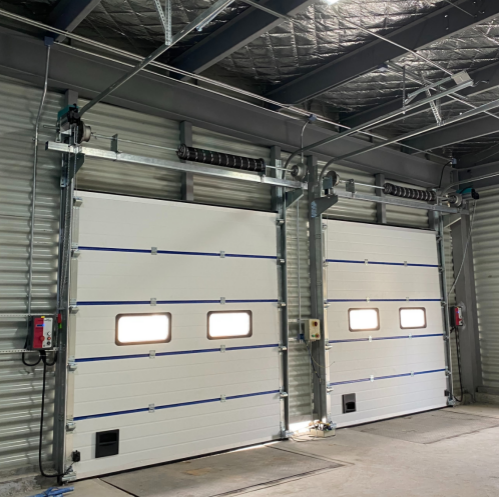

Industrial lift door is a door used outside buildings, which is suitable for modern industrial workshops and large-scale logistics parks with high cleanliness requirements. It has the remarkable characteristics of beautiful appearance, safety and reliability, smooth opening and closing, low noise, good sealing and thermal insulation performance, space saving and improved production efficiency. The industrial lifting door is composed of three parts: door panel, fittings and motor. According to the size of the site environment, it is flexible to install and does not occupy left and right space.
Characteristics of industrial lifting doors
1. Wide applicability: according to the design of building structure, the industrial lifting door opens vertically upwards and hangs on the inner side of the wall above the doorway, which does not occupy indoor space and can release the doorway space to the greatest extent.
2. Excellent thermal insulation performance: the double-layer steel plate reduces the heat energy loss, and the polyurethane foam material provides excellent thermal insulation effect, which makes the industrial lifting door perform well in thermal insulation.
3. Good noise isolation effect: the noise of the door body is low when running, and the galvanized pulley seat is equipped with adjustable ball bearings and wear-resistant rubber wheels to ensure the door to open and close silently and provide a quiet working environment.
4. Strong wind resistance: When the door body reaches a certain width, external reinforcing ribs are designed to ensure its strength.
